T95 System Controllers

The T95 controllers are complete Linkam system controllers capable of not only precision temperature controls, but also moving precision stepper motors, displaying data from high resolution force transducers, humidity and gas sensors and data streaming on to a live video feed.

The operating system can be accessed through Linksys 32 software or the 'LinkPad' an ergonomic touch screen display, which enables the user to quickly enter experimental parameters for the hotstage.

A wider range of controls has been implemented for each line (ramp) of the temperature profile, including parameters such as vacuum pressure, tensile speed and force.  External devices can be controlled through the two programmable open-drain outputs.  Similarly a programmable input provides potential for the T95 to accept a trigger signal.

There are 3 models in the T95 System controller range.

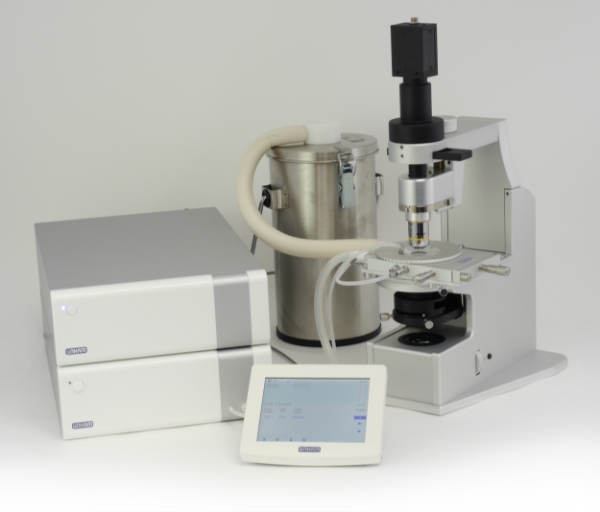

T95 LinkPad

A stand alone controller with LCD touchscreen data input.  Includes RS232 connectivity for optional Linksys 32 software control.

T95 LinkSys

A PC interface controller that requires Linksys 32 software to control your Linkam System (supplied with controller.

PE95

A stand alone controller for the peltier stages with LCD touch screen data input and RS232 connection to enable Linksys 32 software control.

T95 Features

Better Connectivity

The new controller has even better connectivity, now adding USB to the RS232 comm port option.

More Power

There's even more power, heating rates and limits have been significantly increased in specific hotstages (may require heating element upgrade)

On Board Analogue Video Capture

An optional video text overlay board can be added to enable real time temperature control data to be placed on an analogue 30frames per second video signal without requiring a PC.

System Control and Digital Image Capture Software

Control the hotstage and save all data with digital image capture using Linksys 32X-DV PC control software. Unlock even more capability and data acquisition.

Backwards Compatible

The T95 range can be used with older Linkam stages with only slight stage or stage lead modification. A new element is required to get the higher rates and limits.

Future Proof

The T95 has been designed to accept yet further data acquisition sensors and accept new power supplies to be compatible with a number of projects currently being worked on in Linkam's state of the art new R&D facility.
