CCR1000 Features


The CCR1000 stage from Linkam has been designed to study catalytic reactions at high temperature and pressure. Samples are mounted on a virtually unreactive disposable ceramic fabric filters placed inside the ceramic heating element which is capable of heating samples from ambient to 1000°C at rates of up to an incredible 200°C/min.

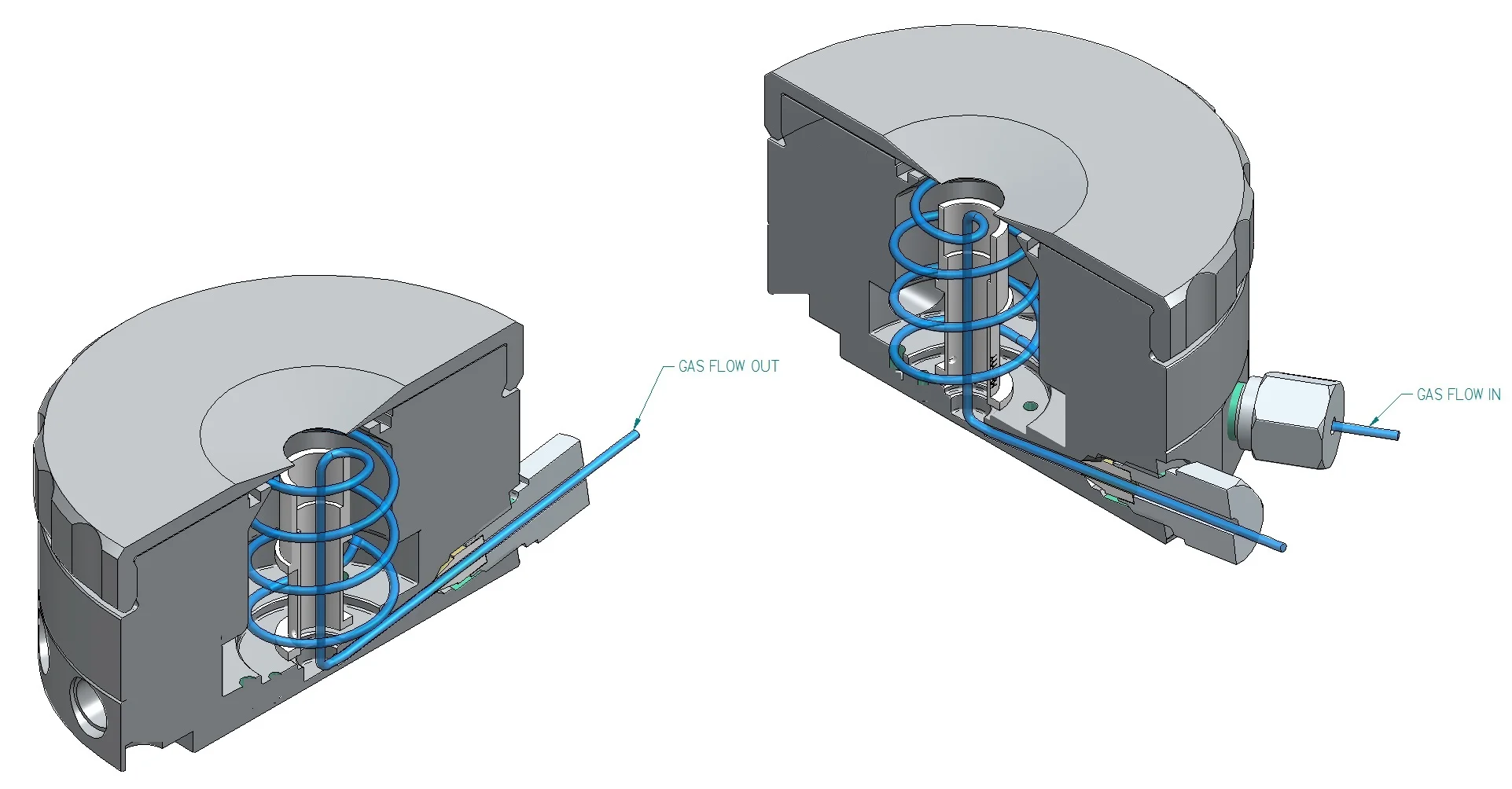

CCR1000 4.jpg

The CCR1000 has been designed to ensure the majority of components that are in contact with the sample and carrier gases are as unreactive as possible. It is possible to use corrosive gases but these may have an impact on the overall life time of the heater and the maximum temperature achievable.
A variety of different lid window materials are available so that brightfield and Raman microscopy techniques can be used.”

Request pricing

Specifications

Read the application notes

Download PDF Brochure

Fluidized Bed for CCR1000

In collaboration with Dr. Pablo Beato at Haldor Topsoe in Denmark, we have recently developed a new technology to homogeneously fluidize particles inside our CCR1000 micro-reactor and conduct heterogeneous catalytic reactions with it, such that they can be monitored by operando Raman spectroscopy, without the drawback of laser heating or damage.

Read the application paper...

This short video shows the movement of the particles.

Contact us to try out this fantastic new instrument.
